BR TRADEX · BOTTLE PACKAGING GUIDE

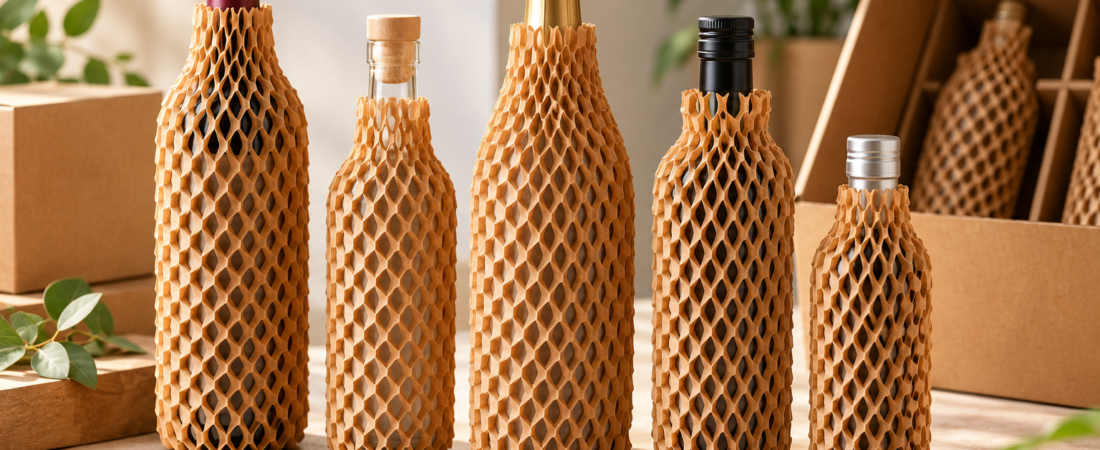

Honeycomb Paper Sleeves for Bottles: Benefits, Sizing and Sleeves vs Rolls

Bottle packaging must protect a fragile container while keeping the packing process practical and repeatable. Honeycomb paper sleeves can provide a paper-based protective wrap for suitable bottles, but sizing, neck and base geometry, glass thickness, carton design and transit conditions determine whether the complete pack is adequate.

An independent, practical guide for buyers, packaging teams and operations managers. The right specification depends on the actual product, handling route and business requirements.

1. Why bottles need a packaging system

Bottles can fail in several ways: glass may crack from impact, necks and shoulders may be vulnerable, caps may loosen, and bottles packed together may strike each other. The base can concentrate weight on a small area, while a protruding cap or pump can be damaged by pressure. Filled bottles also weigh more than empty bottles, and liquids can create additional consequences if a container breaks.

Start by identifying bottle material, fill state, total packed weight, closure type, surface finish, fragile points and route. A protective sleeve is only one component; the carton and internal restraint must prevent bottle-to-bottle contact and limit movement.

2. How a honeycomb paper sleeve may help

A sleeve is a pre-formed or prepared protective covering intended to fit around a bottle. Honeycomb paper’s expanded structure can grip and cushion suitable shapes while providing separation from nearby surfaces. The performance depends on sleeve dimensions, paper construction, overlap, fit and the way it is applied.

A sleeve should not be treated as a guarantee against breakage. It may not protect the cap, neck or base adequately unless those areas are covered by the design. It also does not automatically provide moisture resistance, leak containment or enough cushioning for severe drops. Test the sleeve on the exact bottle and complete carton.

3. Measure the bottle and confirm sleeve fit

Measure overall height including cap, maximum body diameter, neck diameter, shoulder shape and base diameter. For tapered or unusual bottles, note the contour rather than relying on a single diameter. Include any pump, spray head, cork or decorative top. If the bottle is filled, record the filled weight.

Confirm whether sleeve dimensions are measured flat, expanded or in the finished condition. Ask the supplier how the sleeve is intended to open, stretch and close. A sleeve that is too tight may be difficult to apply or put pressure on vulnerable parts; one that is too loose may rotate, slip or expose the surface.

Test the fit on more than one unit to account for bottle variation. Check whether the sleeve remains in position when the bottle is lifted, placed into a carton and removed again.

4. Pre-made sleeves versus paper rolls

Neither format is universally superior. Choose based on bottle range, dispatch volume, labour skill, storage capacity, material consumption and how reliably the pack passes testing.

5. The outer carton and internal separation

Use a carton sized for the complete protected bottles, not only their bare dimensions. Individual sleeves do not prevent bottles from colliding if the carton allows them to move. For multiple bottles, use dividers, cells or fitted inserts that maintain separation during handling. Ensure the base supports the filled weight and the top closure does not press on caps or pumps.

For export or long-distance transport, consider stacking, vibration, changes in handling, humidity and the consequences of leakage. Where the contents are regulated liquids or require special handling, follow the applicable transport and product requirements. Do not rely on a sleeve as a leakproof secondary container.

6. Test the full pack and inspect every component

1. Fit the sleeve to the actual filled or empty bottle configuration.
2. Check coverage at base, shoulder, neck and closure.
3. Place bottles in the intended carton and check separation.
4. Close the carton and test for movement or rattling.
5. Conduct a suitable handling test; use a documented transit test for high-risk or high-volume shipments.
6. Inspect for cracks, chips, scuffs, loose closures, displaced sleeves and carton deformation.
7. Record results and approve the exact sleeve/carton combination.

7. Cost and ordering information

Compare cost per protected bottle, not only cost per sleeve or roll. Include the quantity needed per bottle, labour, tape or closures, dividers, carton cost, rejected material, storage and the cost of breakage or leakage. A sleeve that is cheaper but inconsistent in fit can create additional handling or damage costs.

When requesting a quote, provide bottle photos, overall dimensions, maximum diameter, filled weight, quantity per carton, expected order volume, intended shipping route and whether you need pre-made sleeves or roll material. Ask for a sample and written dimensions before bulk ordering.

Bottle sleeves: sizing, limitations and practical checks

Measure the bottle, not just its stated capacity

A 500 ml bottle is not a standard shape. Bottles with the same capacity may differ in body diameter, shoulder angle, neck length, cap size, base shape and total height. Measure the maximum body circumference or diameter, shoulder and neck geometry, overall height and any raised features. If the sleeve must cover the neck or base, include that requirement in the specification. Test the sleeve on the actual bottle rather than relying only on nominal capacity.

How tight should a sleeve fit?

The sleeve should stay in place without being stretched so tightly that it becomes difficult to apply, tears, or places pressure on a vulnerable neck or shoulder. Too loose, and it can slide or bunch; too tight, and expansion may be restricted or the paper may tear. The correct fit depends on the paper construction, expansion, wrap overlap and bottle geometry. Approve a sample using the same application method staff will use in production.

Does a sleeve prevent glass breakage?

A sleeve can help separate bottles, reduce scuffing and provide a protective wrap, but it does not guarantee that a glass bottle will survive a drop. It does not replace a suitable outer carton, dividers or restraint. The base, neck and shoulder can still experience concentrated loads, and bottles can collide if the carton allows movement. For valuable or fragile bottles, validate the complete pack.

Can sleeves be used for every bottle type?

Not automatically. Straight-sided bottles may be easier to sleeve than bottles with pronounced shoulders, unusual necks, handles or fragile decorative parts. Very heavy glass, filled bottles, unusual closures and moisture-sensitive labels require additional consideration. Check whether the sleeve can be applied consistently without damaging labels or leaving exposed contact points.

How do sleeves compare with honeycomb rolls?

A sleeve is a preformed or prepared format intended for a particular size range and can simplify repetitive packing when bottle dimensions are consistent. A roll is more flexible for mixed product sizes and other shapes but requires the packer to cut or tear and wrap the material correctly. Compare application speed, material use, fit range, protection and storage rather than treating one format as universally better.

Sample approval checklist

• Actual bottle dimensions and shape recorded.
• Sleeve covers the intended areas and does not slip off.
• Application does not crack, scratch or mark the bottle or label.
• Wrap overlap and closure method are repeatable.
• Outer carton, dividers and movement control are included in the trial.
• Packed samples inspected after handling or suitable transit testing.

Bottle sleeve troubleshooting

The sleeve tears while being applied: check whether it is being expanded evenly, whether the paper is pulled beyond its intended range, and whether sharp edges or cap features are catching the cells. Confirm that the selected size and construction match the bottle.

The sleeve slides down: the bottle shape may taper, the sleeve may be too large, or the wrap pattern may not provide enough grip. Test the actual filled or empty bottle as relevant, because weight distribution can affect handling.

The bottle still breaks in transit: inspect the failure point and the carton. A sleeve can protect surfaces but may not stop bottle-to-bottle impact or provide enough cushioning around the base and neck. Add separators or a suitable protective structure and repeat the complete-pack test.

Labels wrinkle or scuff: make sure the sleeve does not bunch against the label and that the application method does not drag rough material across the printed surface. Confirm the label has had sufficient time to adhere and is compatible with the packing environment.

Do filled bottles need different testing?

Yes, where filling changes mass, centre of gravity, leakage risk or pressure on the closure. Test the actual shipping configuration, including cap, seal, label, any secondary containment and outer carton. A sleeve that fits an empty bottle may not be adequate evidence for a filled product’s transport safety.

Questions for bottle-packaging buyers

Tell the supplier whether the bottle is empty or filled during packing, whether it has a label, cap, tamper band or neck decoration, and which areas must remain visible. If the bottle is part of a multipack, specify how bottles are separated in the outer carton. A sleeve may protect one bottle’s surface while the carton still allows bottle-to-bottle collision.

Ask for a sample of the exact size and construction, not only a photograph. Test application speed, fit, tearing, coverage and the finished parcel. For repeated packing, time several units rather than one, since staff consistency and material handling affect the result.

If the bottle contains liquid, consider leakage containment and closure integrity separately from impact protection. A sleeve is not a leakproof secondary container. Use suitable containment and transport procedures for the actual contents and applicable carrier rules.

Using sleeves consistently at packing stations

Set up a sample bottle and sleeve at the packing station as a reference. Show where the sleeve should sit, how much overlap is expected and how the bottle should be placed into its carton. Train staff to reject sleeves that are torn, contaminated, visibly missized or difficult to apply. A fast but inconsistent process can lead to uneven coverage and material waste.

For high-volume packing, record application time over a representative batch and compare it with a roll-wrapping method. Include replenishment, cutting, rejects and storage in the time estimate. If a sleeve reduces handling steps, it may improve consistency; if bottle sizes vary widely, a roll format may offer more flexibility. The right choice depends on the product range and repeat volume.

Bottle-packing scenarios and troubleshooting

Can a sleeve guarantee a bottle will not break?

No. Breakage can occur when bottles collide, necks or bases lack protection, the bottle moves inside the carton or the parcel experiences severe drops or compression. Evaluate the sleeve as one part of the complete system: bottle, closure, sleeve, divider, outer carton and sealing method.

What should be measured?

Record maximum body diameter or width, total height, shoulder shape, neck diameter, cap or pump dimensions and protrusions. Confirm whether the sleeve is flat, preformed or ready to apply. Do not assume nominal width equals usable circumference after expansion; verify the supplier’s measurement method with a sample.

Sleeves versus rolls

Sleeves can simplify repetitive packing for consistent bottle sizes. Rolls are flexible across shapes but require operators to cut, stretch and wrap consistently. Compare material per bottle, packing time, storage footprint, changeovers and waste. Include labour and rejects when calculating cost.

Delicate finishes and multiple bottles

Coatings, labels, metallic finishes and soft-touch surfaces may scratch even if the glass stays intact. Inspect contact points and seams. For multi-bottle packs, sleeves reduce direct contact but do not necessarily prevent collisions; dividers should keep bottles apart and protect necks and shoulders. Check top and bottom clearance and stability when the carton is handled.

Common failure signs

• Sleeve slips: verify size and intended bottle geometry.
• Finish scratches: inspect friction points and inner-surface compatibility.
• Bottles collide: improve partitions and carton fit.
• Neck or cap damage: review top clearance and vulnerable geometry.
• Carton crushes: review box strength, stacking, moisture and handling.
• Slow application: standardise the sequence and measure operator time.

Sample approval checklist

1. Use the exact bottle, cap and label intended for shipping.
2. Apply the sleeve with the planned production method.
3. Check coverage, slippage, scuffing and operator handling.
4. Pack single- and multi-bottle configurations.
5. Inspect dividers, movement and top/bottom clearance.
6. Run a suitable distribution test and inspect every bottle.
7. Record the approved sleeve, carton, insert and method together.

For liquids, separately assess leakage prevention, cap torque, tamper evidence and carrier rules. A cushioning sleeve does not replace a suitable closure or shipping compliance.

Shipping liquids and fragile glass are separate risks

A cushioning sleeve is intended to help protect the bottle, but it does not prevent leakage from an unsuitable closure. Confirm that the cap, liner, seal and tamper-evident feature are suitable for the contents and route. If bottles are shipped in different orientations, consider whether the closure and package have been evaluated for that condition. Follow carrier restrictions for the contents, particularly for regulated liquids. Keep leakage prevention and impact protection as separate checks in the packaging specification.

Record a repeatable bottle-pack standard

Document the approved bottle size, sleeve format, application method, divider, carton dimensions, closure and test results. Include photographs of correct placement if that helps operators. When the bottle, label, cap or supplier changes, verify fit again; a small change to a shoulder or cap can alter coverage and movement. Review damage reports by failure location—base, body, neck, cap or surface finish—because each may require a different corrective action.

FAQs

Can one sleeve fit every bottle?

Not reliably. Bottle geometry and size vary; test fit and retention for each relevant bottle family.

Does a sleeve eliminate the need for dividers?

No. Multiple bottles may still strike each other. The carton system must keep them separated.

Can sleeves be used for filled bottles?

They may be suitable depending on the bottle and pack design, but test the filled weight and handling conditions. Ensure the closure and contents comply with applicable shipping requirements.

What is the best way to start?

Send the bottle dimensions and photos, request a sample, and test the complete packed carton before deciding the bulk quantity.
